Designed to be used in installation where pipe movement is possible.
Technical Data

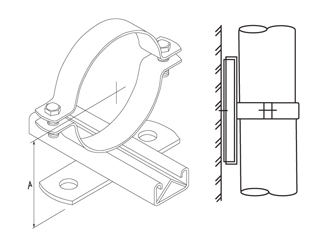

Consists of two main components, one is attached to the pipe line, fabricated from channel section, and the other component consists of a base member on which the clamp attached to the pipe rests and slides.
FOR STEEL PIPE
FOR COPPER PIPE
PART NO.
PIPE SIZE
A (mm)
DMC140022
1/2"
54
DMC140028
3/4"
57
DMC140035
1"
60
DMC140040
1 1/4"
65
DMC140048
1 1/2"
67
DMC140060
2"
73
DMC140075
2 1/2"
81
DMC140090
3"
88
DMC140115
4"
101
DMC140140
5"
155
DMC140168
6"
129
Finish : Galvanized
PART NO.
PIPE SIZE
A (mm)
DMC140015
15mm
49
DMC140020
20mm
53
DMC140025
25mm
56
DMC140032
32mm
59
DMC140038
40mm
62
DMC140050
50mm
73
DMC140064
65mm
76
DMC140076
80mm
81
DMC140102
100mm
94
DMC140127
125mm
108
DMC140152
150mm
121
Finish : Polyster Powder Coated
Clamp can be fabricated to suit diameters of insulated pipes.
Can be used for horizontal and vertical installation
